Krautz Temax Mobi-Box insulated thermal roll container for fresh chilled frozen food products

Krautz Temax Isolierte Thermobehälter Rollbehälter für Frischwaren Kühlprodukte Frostwaren Tiefkühlkost

Transform your standard roll container into an insulated thermal roll container

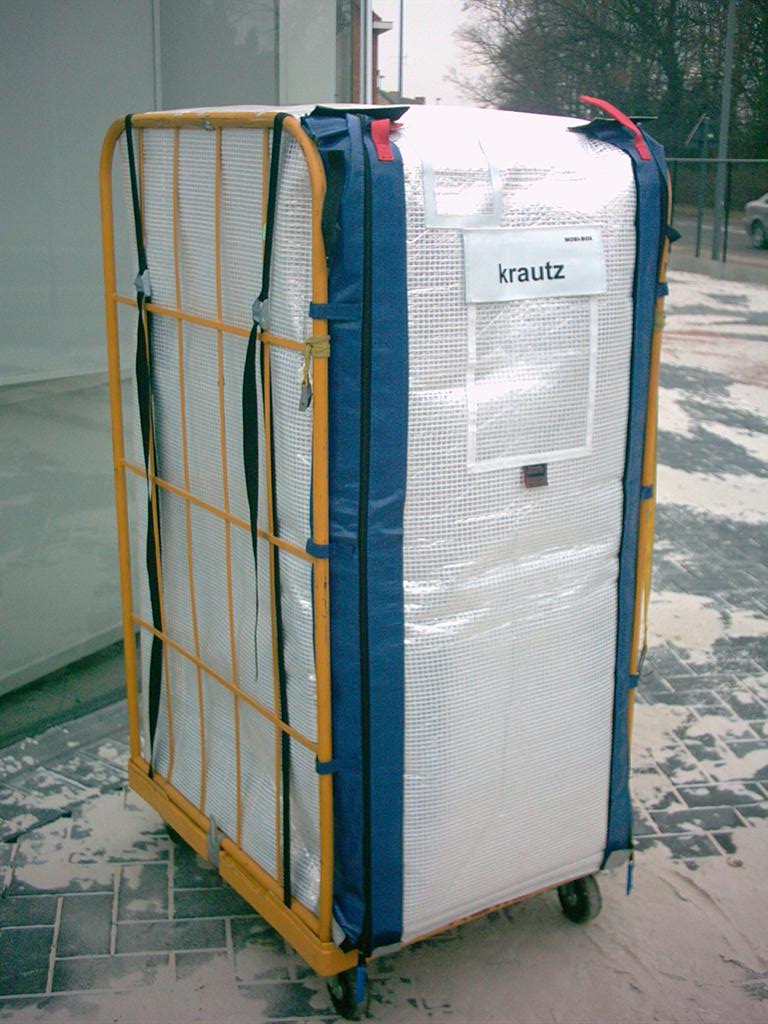

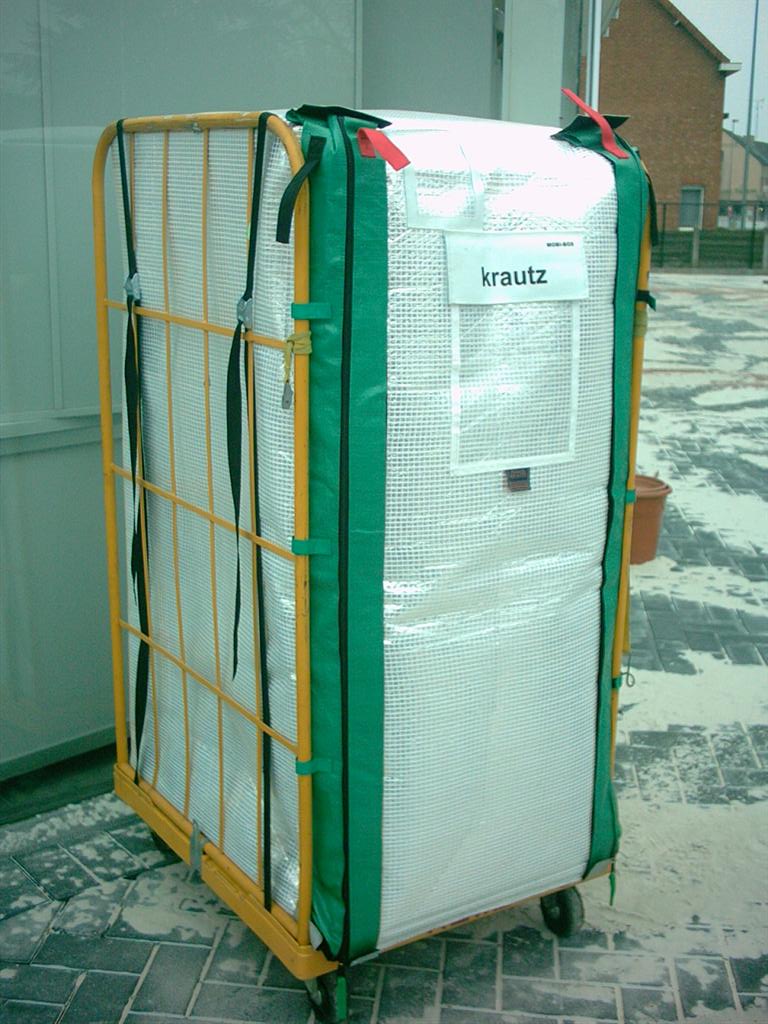

Mobi-Box insulated flexible and light weight thermal container

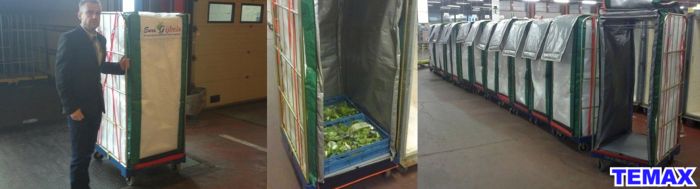

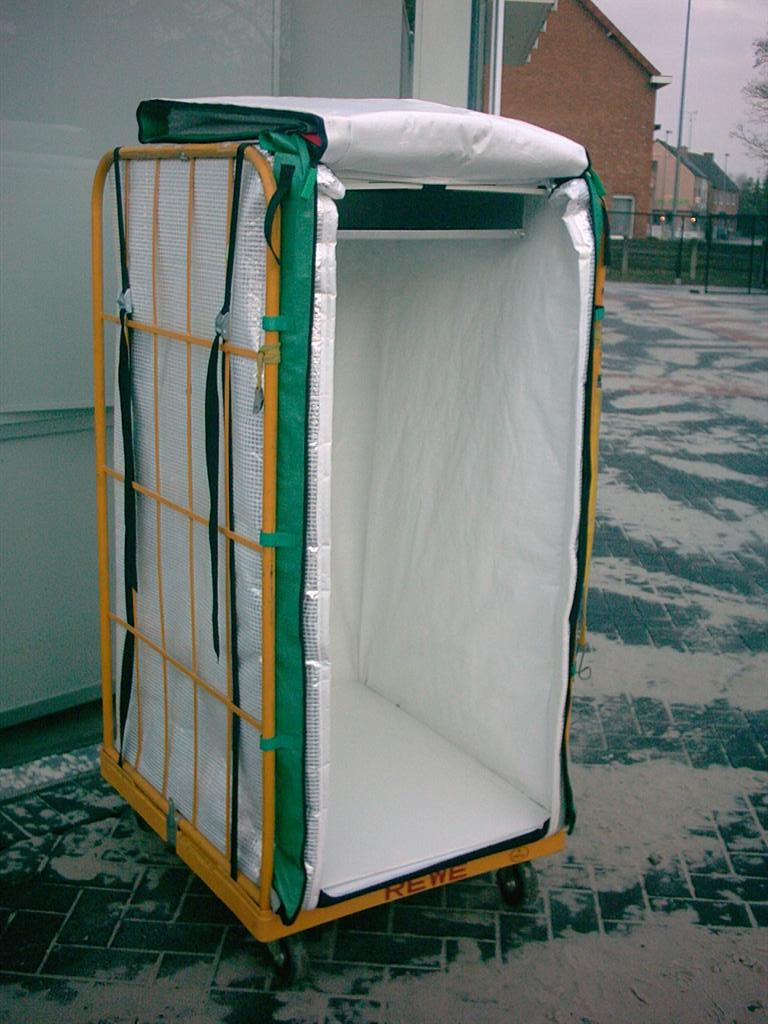

Krautz - Temax has developed a new and unique insulated cover or thermal cover which is placed on the inside of a standard roller container which transforms a standard roller container into an insulated container or thermo container. The Mobi-box, as the cover is called, is used to maintain the temperature of conditioned or temperature sensitive goods which are loaded into the container. The Mobi-Box is successfully in use at supermarkets in France and Germany for the distribution and logistics of chilled and frozen food products. The insulated cover is mounted one time in the roller container and stays in the container transforming the combination of cover and roller container into a light weight insulated container or thermal container.

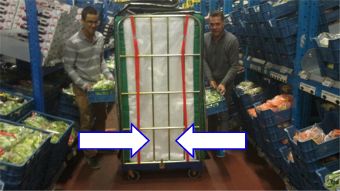

Two doors = speed + ergonomics

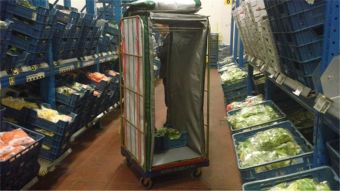

The Mobi box thermal cover or thermal roll container can be equipped with two doors to increase the loading and unloading processes. Due to the two doors, the chilled producs can be loaded into the thermal cover from two sides which creates handling speed and stimulates ergonomics. In a standard thermal container, with only one door, the products must be placed deeper into the container creating a bigger impact on back inguries for the employees. This is avoided with the Mobi-Box thermal cover.

Krautz Temax Mobi-Box geïsoleerde rolcontainer thermocontainer - Isolierte Thermobehälter verfahrbar - Conteneur isotherme

Krautz Temax Thermobehälter Frische Kühlprodukte Mopro Tiefkühl Transport Logistik

The big logistic advantage of the Mobi-Box thermo container
Seeing the Mobi-Box is tailor made according to the sizes of the roller container the customer maintains its own dimensions which is not the case when heavy solid thermo containers are used. These solid thermal containers are bigger than the dimensions of the standard roller containers and require therefore special attention in de planning of the distribution. The solid thermal containers take a lot of place in the trucks or trailers, or they take a lot of load-space. This is not the case with the Mobi-Box. It preserves the standard dimensions of the roller container which is being used. Another big advantage is the leight weight. The very light weight of the cover + roller container makes the combination aesy to handle.

You keep the dimensions of your standard roller container
The Mobi-Box thermal cover is tailor made to the dimensions of your standard roller container. This means that in your logistics, you keep the standard dimensions of the roller container. This in regards to thermo containers which have special dimensions and have an impact on the load in the trucks / trailers.

Maximal load capacity
The Mobi-box has a thickness of ca 2cm. This has the advantage that the mobi-box has a minimal impact on the load capacity of crates and boxes

Very light weight
The Mobi-box has a weight of only 15kg which makes the mobi-box a pleasure to work with. For your logistic co-workers and your customers

Removable and insulated industrial zippers
The "Mobi-Box" thermal cover is equipped with a unique removable zipper system. The industrial zippers are used to open and close the loading door of the Mobi-Box which mekes the door easy to open and to close. These zipper closures are also insulated. Yet a zipper can always be damaged meaning that the cover cannot be used again. To avoid this, the Mobi-Box has velcro removable zippers so when they are broken, they can easily be replaced

Krautz Temax Mibi-Box Thermobehälter Isolierte Behälter Frische Kühlwaren Tiefkühl Transport Lagerung

Krautz Temax Mobi-Box conteneur isotherme thermique isolant pour conteneur de rolls produits frais surgéles congéles

Krautz Temax Mobi-Box thermocontainer geïsoleerde rolcontainer tranbsport koel vers diepvries supermarkt

MOVIE – Mobi-Box thermal roll container

Temperature characteristics

Preservation and stabilization of the product temperature
The Mobi-Box thermal covers are used to preserve or stabilize the temperature of the products, which are protected by the thermal cover, as long as possible. The time that the temperature can be preserved of stabilized, or the speed of temperature increase or decrease, is depending on the insulation quality. Thermal covers or insulated covers with middle closures are manufactured with a certain Temax insulation material which have a certain insulation quality (R-value or U(k)-value). The higher or thicker the insulation quality, the longer the time of temperature preservation or the slower the speed of temperature change of the products inside the thermal cover.

External convection flows due to open thermal bridges – cold bridges
Next to the insulation quality of the thermal cover with middle closure, the stability or deviation speed of the temperature of the product is also depending on the presents of open thermal bridges or open cold bridges on the thermal cover and packaging set-up. Open thermal bridges are locations in the design or set-up of the thermal cover where an external convection flow (air flow) can exist which has a very big impact on the speed of temperature change. It is therefore very important that open thermal bridges are avoided at all times.

Adding extra thermal energy generators - Gel Packs – Dry Ice – PCM’s Phase Change Materials
When conditioned or time-temperature sensitive products are protected from external temperature influences with a passive cooling systems such as thermal covers with middle closure systems, the goal is to purely use the available thermal energy of the products to maintain and stabilize the temperature of the products as long as possible. As we know, the result of this stabilization is depending on the insulation quality of the thermal cover combined with possible convection flows and the thermal energy of the products combined with the temperature difference (inside-outside). If the temperature cannot be maintained according to the preferred time-frame, the time can be extended by increasing the available thermal energy. This extra energy can be generated by all kind of passive cooling systems such as gel packs – ice packs – dry ice – PCM’s Phase Change Materials.

Air in the roll container = negative effect on the available thermal energy
When roll containers are filled with conditioned products, it can happen that the roll container is not completely filled. Yet the roll containers have sidebars which stand higher than the filled goods. This means that lots or air can go into the roll container when the thermal cover is placed over the side-bars. Therefore it is very important that this air is kept to a minimum or an insulated blanket is being placed on top of the goods to protect it from the air above. Also it is important to bring-on the cover in the cold storage room so the air above the goods is the same as the temperature of the goods. Hot air combined with chilled products will have a negative temperature result.
Thermal equilibrium: Always remember that two different temperatures combined in a single thermal packaging system will create a natural thermal equilibrium in which a mutual temperature is created. The final temperature is depending on the thermal energy of each individual product or substance.

Insulation qualities

Temax-4000 Temax-2000 Temax-1000 Temax-500 insulation quality
